Avalon CL Wide Range Pod
Fetal monitoring accessories
Avalon CL Wide Range Pod
Fetal monitoring accessories
The Avalon CL Wide Range Pod extends the range for the use of Avalon CL transducers and Avalon CL Fetal & Maternal Pod and Patch via the hospital’s WLAN infrastructure. The Avalon Cableless solution combines convenience and versatility with ease of use, freeing the mother from cables during all stages of care, especially in labor and delivery.
Features
No cables means moms have freedom to move
Avalon CL can enhance the experience for the laboring mom without sacrificing essential fetal monitoring needs needed by the clinician. It allows moms to move freely during labor and offers them flexible birthing options. And without cable clutter to deal with, clinicians can concentrate on making patients’ time in the hospital as enjoyable as possible.
Cableless measurements extended via WLAN infrastructure
The Avalon CL Wide Range Pod extends monitoring of all Avalon cableless measurements, CL Transducers and CL Pods to the Avalon fetal monitor via the hospital’s WLAN infrastructure. The range is only restricted by your WLAN infrastructure. Despite the wide range, you are in control. With the Call Patient functionality you can call the expectant mom back to the room when needed, or see her location on the surveillance system IntelliSpace Perinatal (revision K or later).
Freedom of movement and comfort
The Avalon CL Wide Range Pod takes our cableless solution to a new level, giving expectant mothers additional freedom of movement and promoting comfort during labor. A walk through the hospital or a visit to the cafeteria is possible with the Wide Range Pod, while vital parameters are being monitored with the Avalon CL Beltless Pod and Patch or CL Transducers.
Specifications
- Environmental
- Operating temperature
- 0‑40°C (32‑104°F)
- Operating humidity
- <lt/>95% relative humidity @ 40°C (104°F)
- Operating Altitude
- -500‑3000 m (-1640‑9840 ft)
- Charging temperature
- 0‑35°C (32‑95°F)
- Storage/transportation temperature
- -20°C‑60°C (-4°F‑140°F)
- Storage/transportation humidity
- <lt/>90% relative humidity @ 60°C (140°F)
- Storage/transportation altitude
- -500‑4600 m (-1640‑15091 ft)
- Product details
- Use with Philips Equipment
- 865071
- 865132
- 862199
- 862198
- 865237
- Use with Philips Supplies
- 866074
- 866075
- 866076
- 866077
- 866488
- 989803168881
- 989803196421
- 989803196341
- Physical
- Size (W x H x D)
- 55 mm x 26.5 mm x 122 mm (2.1 in x 1 in x 4.8 in)
- Weight
- 0.14 kg (0.3 lb)
- Battery type
- Integrated rechargeable Li-Ion battery with a battery gauge and a cycle counter
- Battery runtime (fully charged battery)
- 4 hours minimum
- Battery life
- 500 charge-discharge cycles or older than 4 years
- Battery transducer storage time
- Stored batteries and transducers should be partially charged 40-50% of the capacity every 6 months
- Battery recharging time
- 3.0 hours
- Water ingress protection code
- IP32 (protection from dripping water)
- Shock resistance
- Withstands a 1 m drop to concrete surface with possible cosmetic damage only
Related products
- Simple activities like finding a comfortable position or even just walking around can be quite challenging for a mother-to-be connected to a maternal and fetal monitor. As a caregiver, you want to make your patients comfortable, and offer flexibility, while you focus on the most important factor - their well being. Avalon CL provides all of this, and more.
- As a caregiver, you want to sustain your patient’s mobility and comfort. Cableless transducers can help, without sacrificing essential monitoring. However, traditional cableless technology has limitations, such as mothers with a high BMI¹,² or those undergoing epidural procedures. This is where the Avalon beltless maternal and fetal monitoring solution provides an alternative.

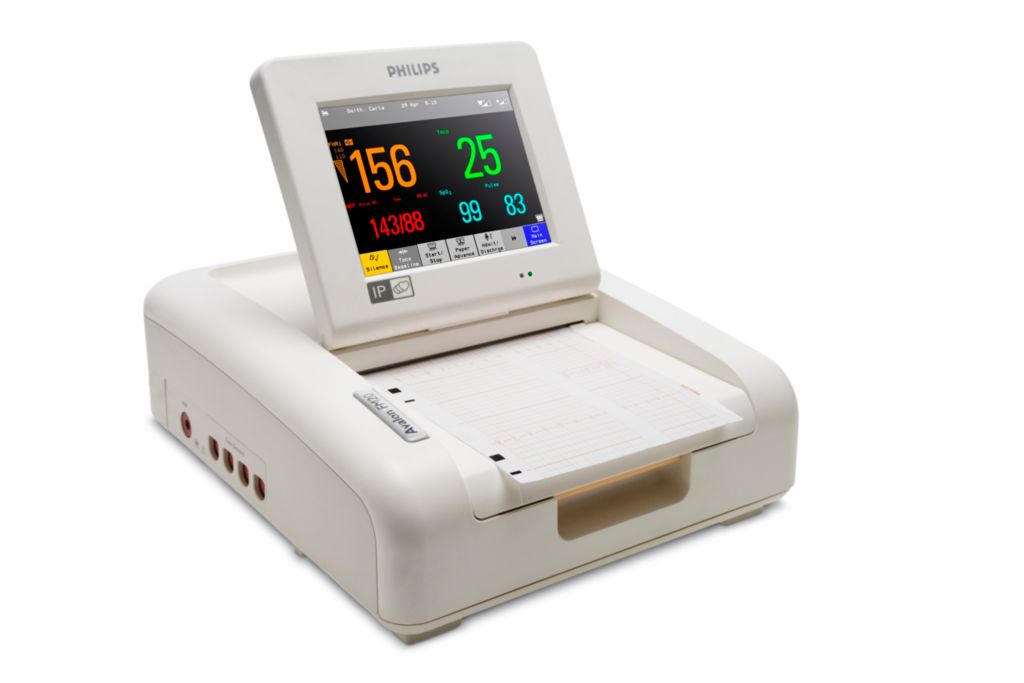

- Avalon FM fetal and maternal monitors are Philips first and only to offer automated coincidence detection (cross-channel verification) using Smart Pulse. It measures the fetal & maternal heart rates separately to enhance diagnostic confidence.
