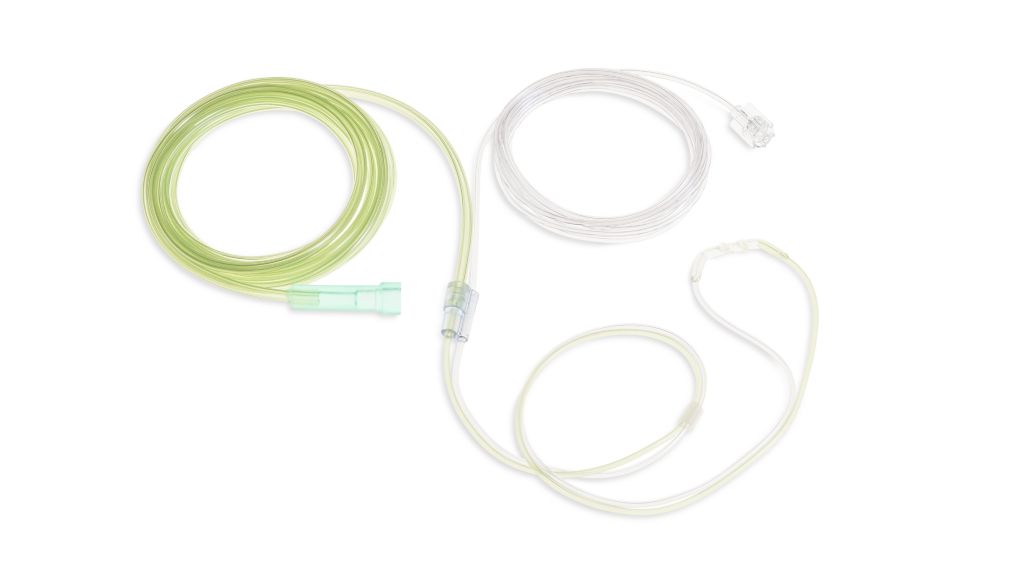

CapnoTrak
CO2/O2 Nasal Cannula
CapnoTrak
CO2/O2 Nasal Cannula
The CapnoTrak module is an internal capnography solution for monitoring EtCO2 and respiratory rate. The only exterior components needed are the reusable filter assembly, dehumidification tubing, and cannula or airway adapter. The CapnoTrak accessories are available in a variety of sizes for use on intubated and non-intubated patients. The nasal cannulas and airway adapters support a wide range of clinical applications for adult, pediatric and infant patients. The extension lines are for optional use that requires sampling at a greater distance.
Features
Calibration Not Required
The CapnoTrak requires no calibration before use and has a short warm-up time, facilitating its use in emergencies. There is a wide selection of twelve patient interfaces, an optional O2 delivery line, and a CO2 extension line.
Eliminates the need for water traps
The CapnoTrak eliminates the need for water traps by using a water filter designed with a hydrophilic filter and a hydrophobic plug to protect the sample cell from moisture and secretions. To maximize the life of the water filter, the addition of dehumidification tubing is recommended.
Crisp CO2 Waveform
The CapnoTrak has a small-diameter opening in the center of the lumen of the airway adapter, a water filter, and a very small sample cell, which results in a very crisp CO2 waveform, fast rise time, and suitability for respiration rates up to 100 rpm.
Specifications
- Product details
- Use with Non-Philips Healthcare Equipment
- The CapnoTrak accessories have been validated for use with the CapnoTrak internal engine and use of non Respironics accessories cannot be verified.
- Use with Philips Healthcare Equipment
- Use with: Efficia patient monitors (863300, 863301, 863302, 863303, 863304) and defibrillator (867172).
- Product Category
- Capnography
- Product Type
- Sampling Lines
- Single-Patient Use OR Multi-Patient Use
- Single-Patient Use
- CE Certified
- Yes
- Package Weight
- 80 grams / 2.8 ounces
- Packaging Unit
- 25/bag
- Not manufactured with natural rubber latex
- Yes
- Minimum Shelf Life
- N/A
- Sterile OR Non-Sterile
- Non-Sterile
- Use with Other Supplies
- CapnoTrak accessories have been validated for use with the CapnoTrak Module.
- Technology
- SideStream
- Patient Application
- Infant/Neonatal
- Intubated or Non-Intubated
- Both
- With Oxygen
- Yes
