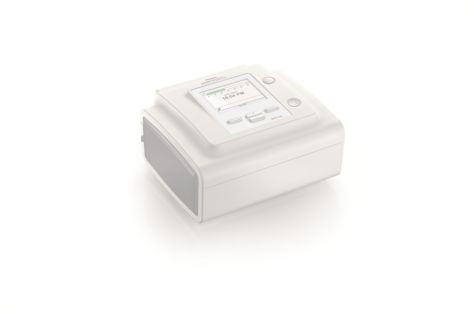

BiPAP A40

Specifications

BiPAP A30 specifications

BiPAP A30 specifications

Weight	2.1 Kgs (with power supply)
Ventilation modes	CPAP, S, S/T, PC, T
IPAP	4 – 30 cm H₂O
Hybrid ventilation	AVAPS (Average Volume Assured Pressure Support)
Size	21.6 cm W x 19 cm L x 11.5 cm H
DC power source	12 VDC, 5.0 A (external battery), 24 VDC, 4.2 A (power supply)
AVAPS rate	0.5 to 5 cmH2O/min
EPAP	4 – 25 cm H₂O
Battery back-up	11 hours at IPAP 15 / EPAP 4 cm H2O and 12 BPM
Target tidal volume (when AVAPS enabled)	200 – 1500 ml
Inspiratory time	0.5 – 3 sec.
Breath rate	0 – 40
Rise time	1 (100 ms) – 6 (600 ms)
Triggering and cycling	Digital Auto-TRAK algorithm
Polygraph and polysomnography connections	Direct connection to Alice PDx and Alice6 PSGs, AOM to connect to most PSG systems
Noise level	< 30 dBA at 10 cmH2O
Humidification	System One humidity control and ‘Dry Box’ technology
Alarms	Patient disconnection, Apnea, Low minute ventilation, Low tidal volume with AVAPS only), High respiratory rate
Monitoring	Pressure, tidal volume, minute ventilation, respiratory rate, Leak, I/E ratio
Data management	EncorePro 2 and DirectView software Compatible with oximetry module, Advanced detection of residual respiratory events (Apnea/Hypopnea Index, Obstructed Airway Apnea, Clear Airway Apnea, Hypopnea, Periodic Breathing, RERA, Large Leak and Snore)
Remote control	Compatible with PC Direct

BiPAP A30 specifications

BiPAP A30 specifications

Weight	2.1 Kgs (with power supply)
Ventilation modes	CPAP, S, S/T, PC, T

See all specifications

BiPAP A30 specifications

BiPAP A30 specifications

Weight	2.1 Kgs (with power supply)
Ventilation modes	CPAP, S, S/T, PC, T
IPAP	4 – 30 cm H₂O
Hybrid ventilation	AVAPS (Average Volume Assured Pressure Support)
Size	21.6 cm W x 19 cm L x 11.5 cm H
DC power source	12 VDC, 5.0 A (external battery), 24 VDC, 4.2 A (power supply)
AVAPS rate	0.5 to 5 cmH2O/min
EPAP	4 – 25 cm H₂O
Battery back-up	11 hours at IPAP 15 / EPAP 4 cm H2O and 12 BPM
Target tidal volume (when AVAPS enabled)	200 – 1500 ml
Inspiratory time	0.5 – 3 sec.
Breath rate	0 – 40
Rise time	1 (100 ms) – 6 (600 ms)
Triggering and cycling	Digital Auto-TRAK algorithm
Polygraph and polysomnography connections	Direct connection to Alice PDx and Alice6 PSGs, AOM to connect to most PSG systems
Noise level	< 30 dBA at 10 cmH2O
Humidification	System One humidity control and ‘Dry Box’ technology
Alarms	Patient disconnection, Apnea, Low minute ventilation, Low tidal volume with AVAPS only), High respiratory rate
Monitoring	Pressure, tidal volume, minute ventilation, respiratory rate, Leak, I/E ratio
Data management	EncorePro 2 and DirectView software Compatible with oximetry module, Advanced detection of residual respiratory events (Apnea/Hypopnea Index, Obstructed Airway Apnea, Clear Airway Apnea, Hypopnea, Periodic Breathing, RERA, Large Leak and Snore)
Remote control	Compatible with PC Direct
